Gutter Components
Gutter systems can be broken down into three main groups:
Gutter Parts
The Horizontal Framework of Your System
Gutter Coil (6" & 7")
Available Sizes:
- 6-inch gutters – Standard residential size
- 7-inch gutters – Handles tile and metal roofs and heavier rainfall

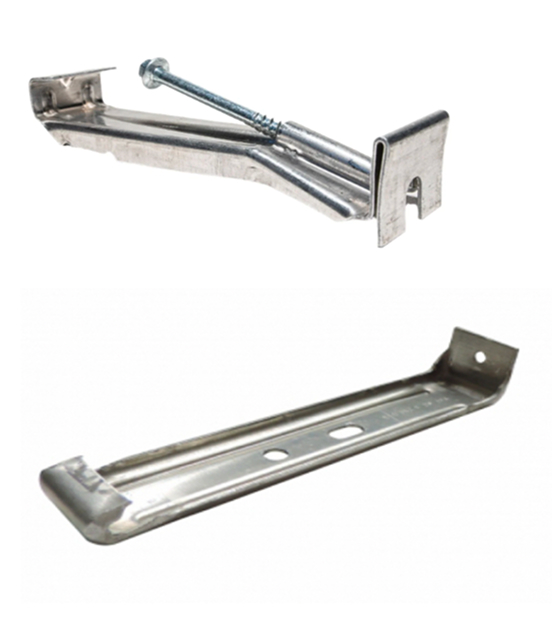

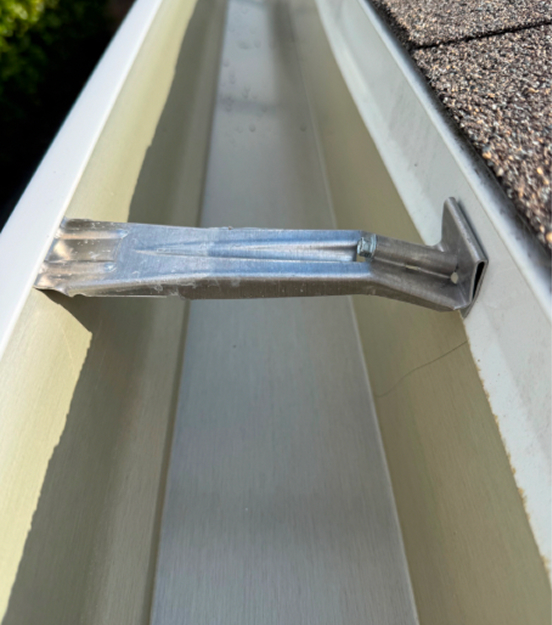

Interior Hangers
Interior hangers fasten the gutter to the fascia. They work to distribute weight evenly and maintain the proper pitch. The modern hidden hangers we use at Gecko Gutter resist loosening over time, unlike older spike-and-ferrule systems that can loosen and allow the gutter to sag as wood expands and contracts.
Ideal spacing for gutter hangers is every 24 inches. Tight spacing provides consistent support along the entire run, ensuring your gutters stay aligned and functional.

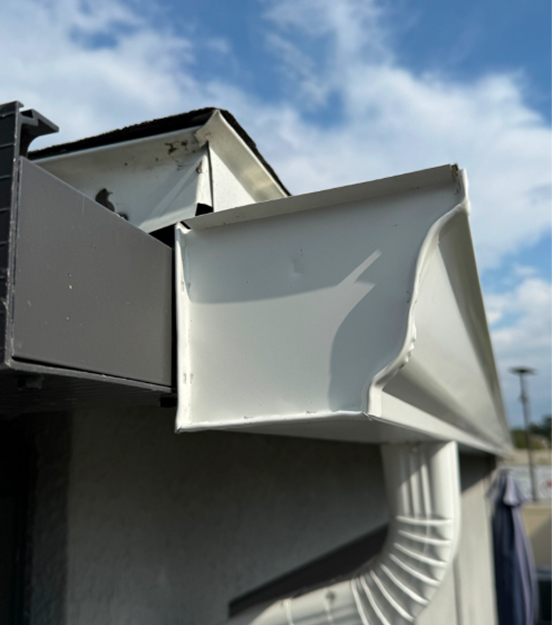

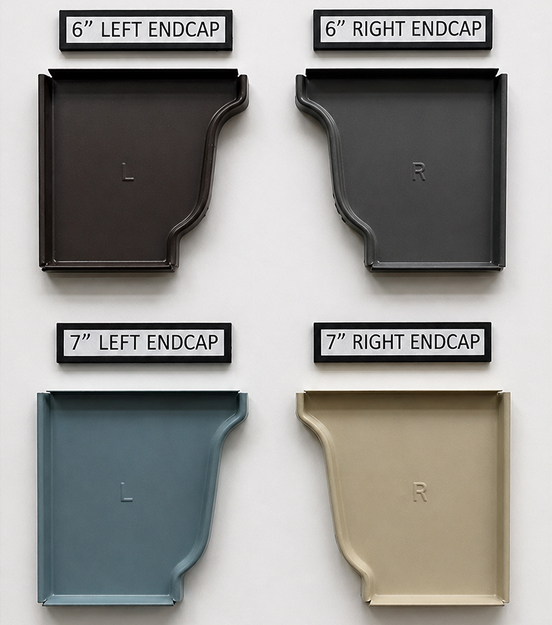

End Caps

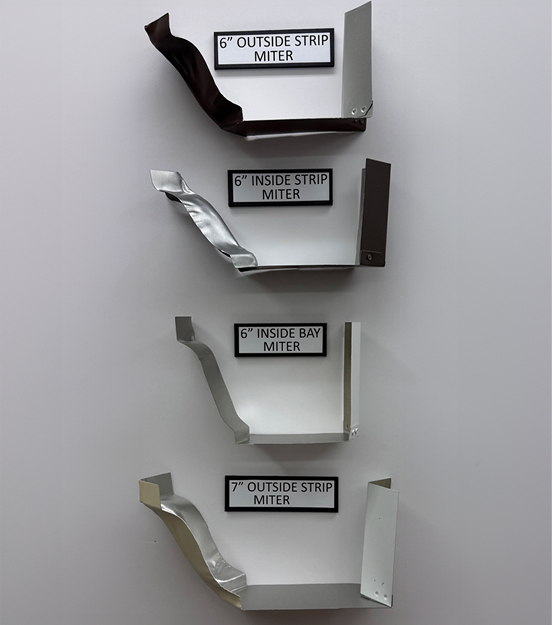

Miters

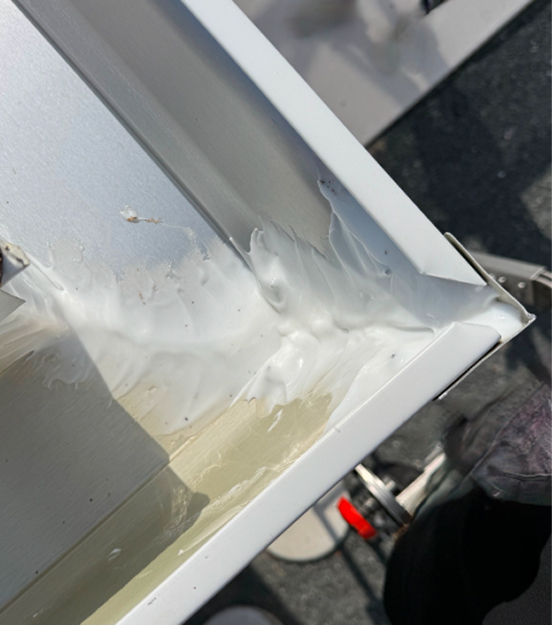

Interior view of fully sealed outside miter

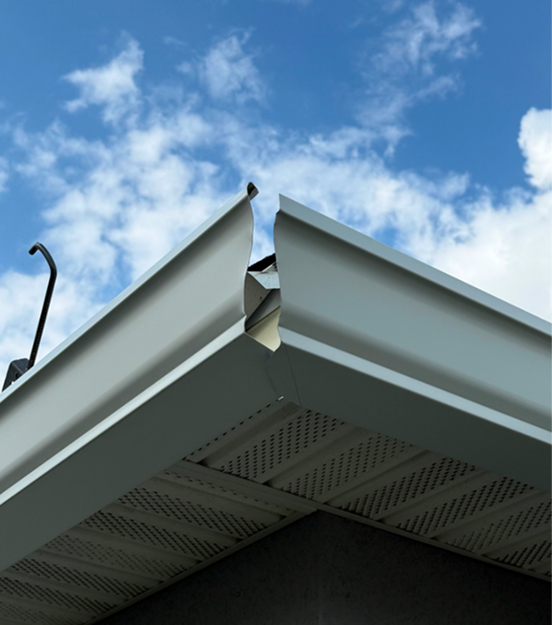

Exterior view, outside corner ready for miter

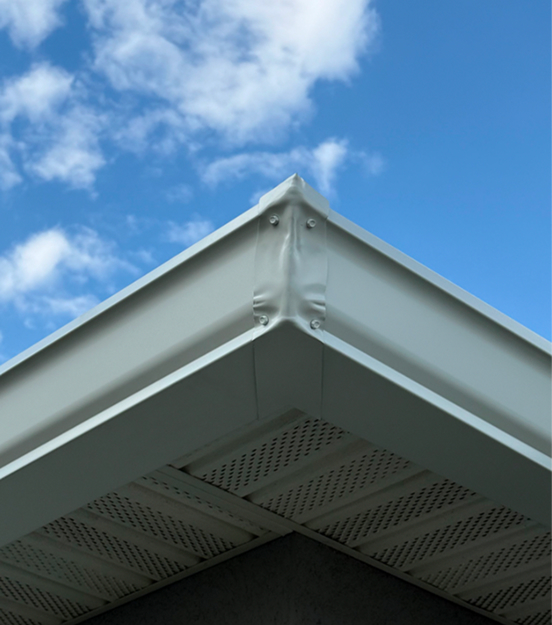

Exterior view, outside strip miter installed

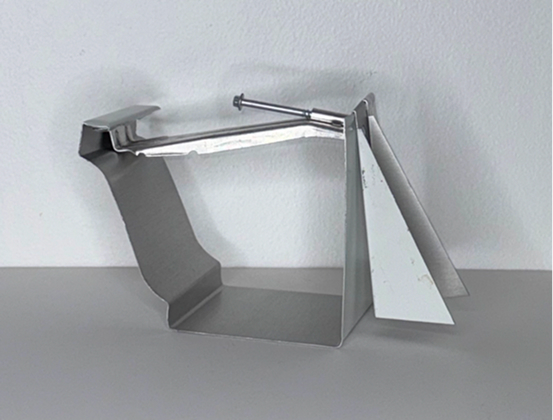

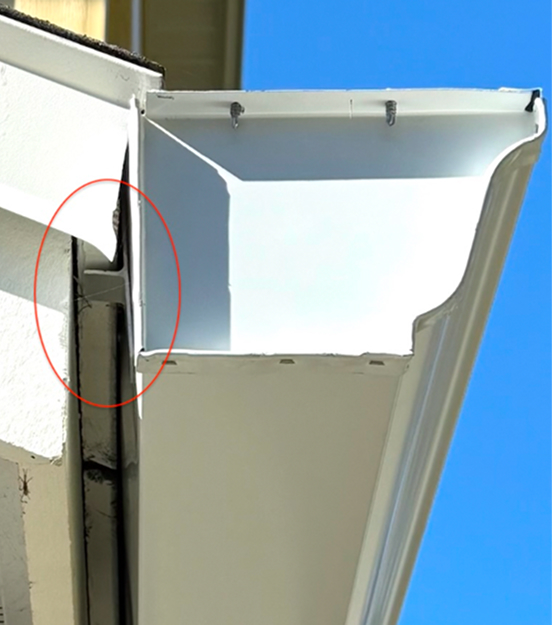

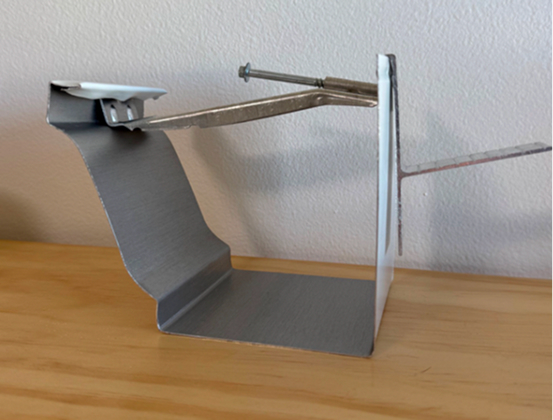

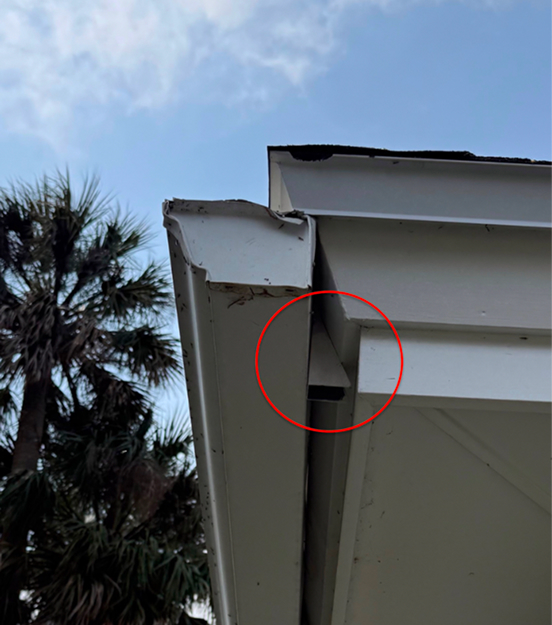

Wedges (T-Wedges & Triangle Wedges)
Wedges are used when fascia boards are angled rather than vertical, or when there is a 1×2 underneath the drip edge, resulting in a space behind the gutter. They allow hangers to sit properly and maintain consistent water flow.
Without wedges where required, gutters may face a variety of issues. They could tilt improperly or retain standing water, reducing your gutter system’s efficiency and lifespan.
Downspout Parts
Vertical Drainage Components

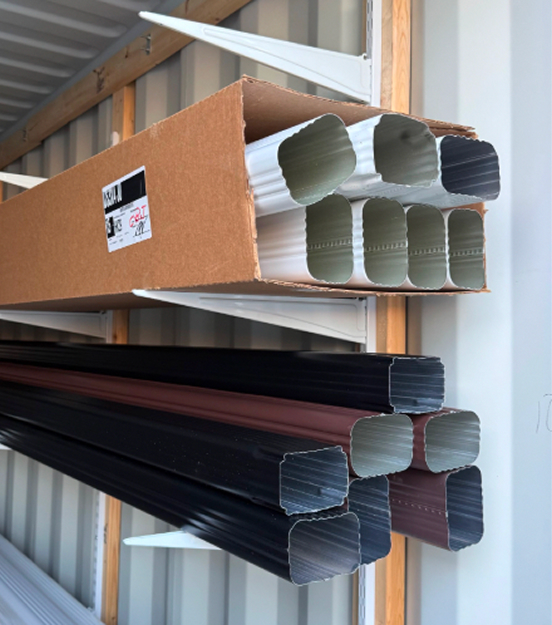

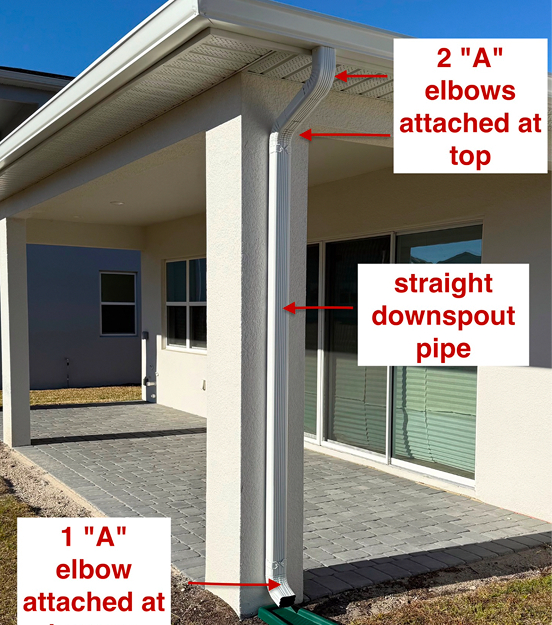

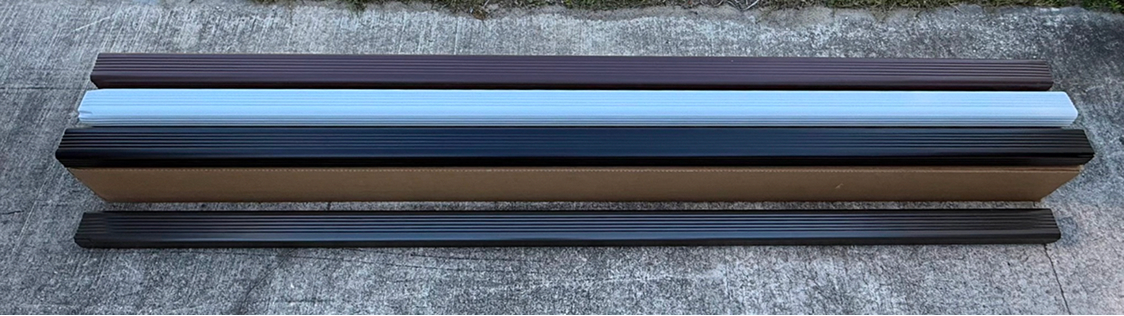

Downspouts
Downspouts are straight, hollow aluminum pipes that transport water vertically from the gutter down to the ground and away from your foundation. Proper sizing and placement are important to correctly and efficiently handle the flow of water. This reduces strain on the system and protects your home.
Downspouts come in 8’ and 10’ lengths.
Available Sizes:
- 3″ x 4″ – Standard residential
- 4″ x 5″ – Handles higher water volume

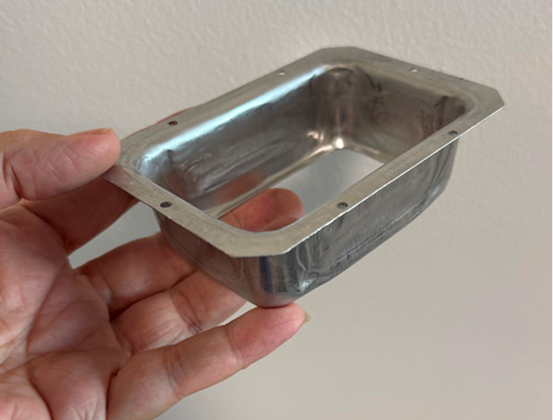

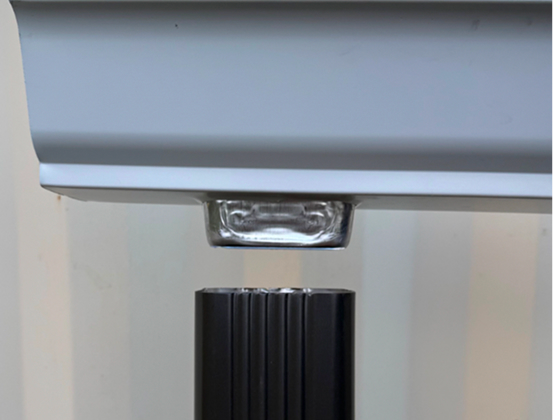

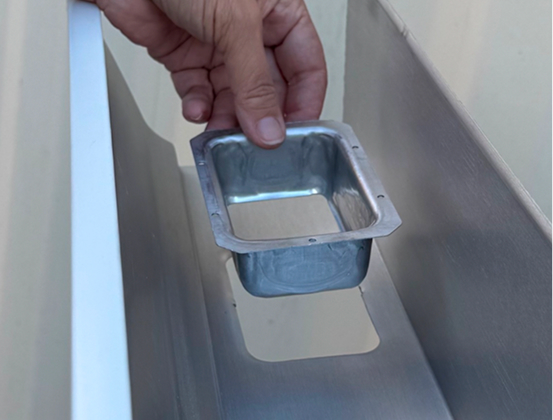

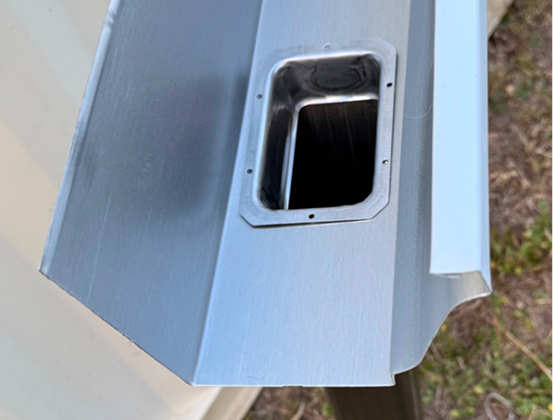

Outlets

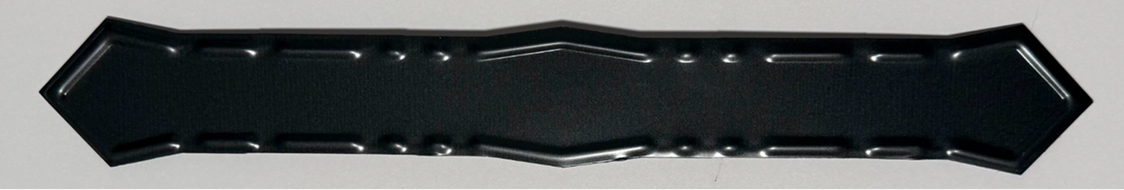

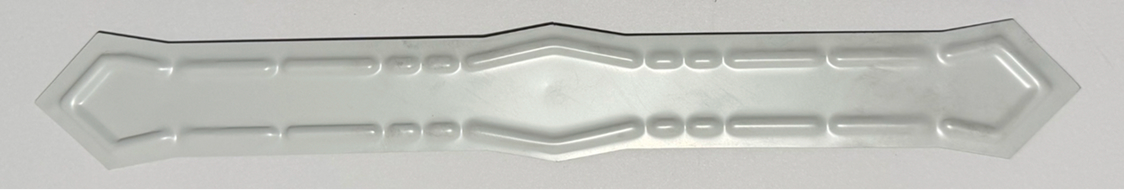

Downspout Straps

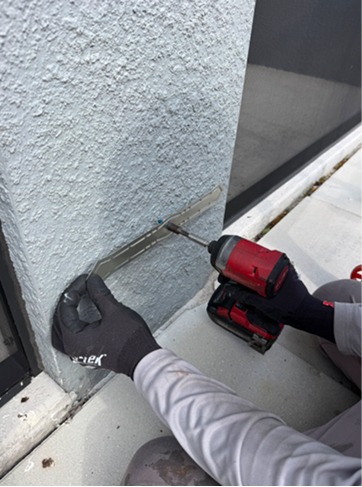

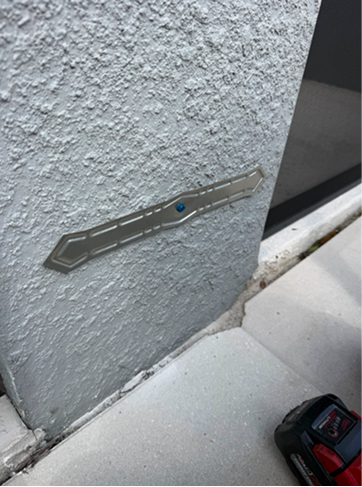

- Downspout strap being attached to stucco wall.
- Downspout strap ready for downspout.

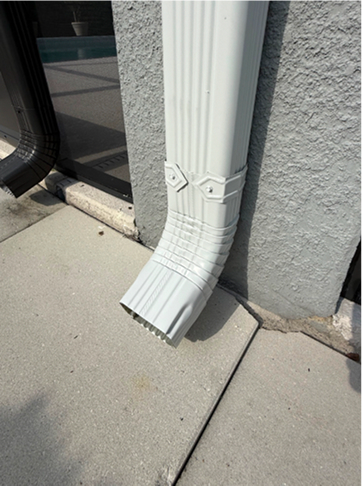

- Downspout strap wrapped around downspout and secured with two screws.
Elbows (A, B, & Offset)

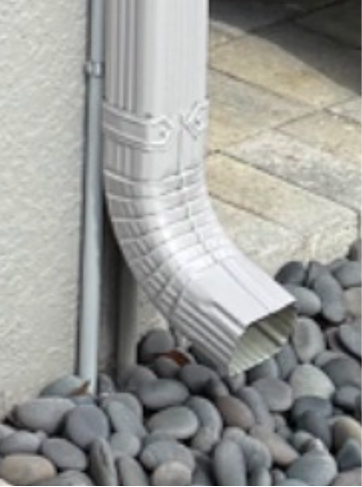

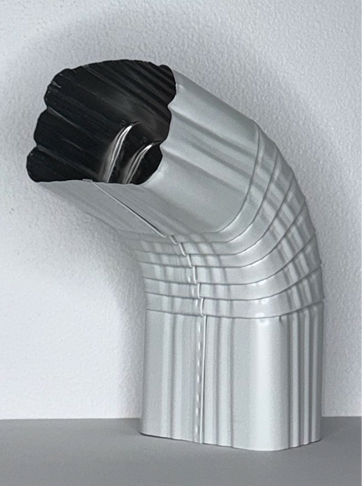

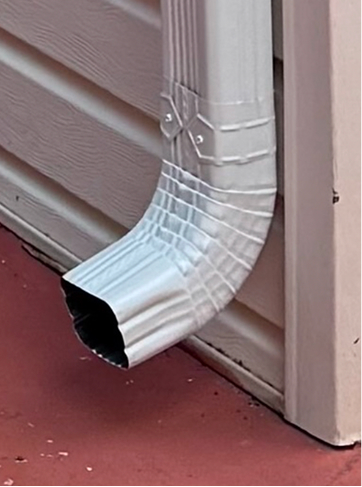

A elbows:

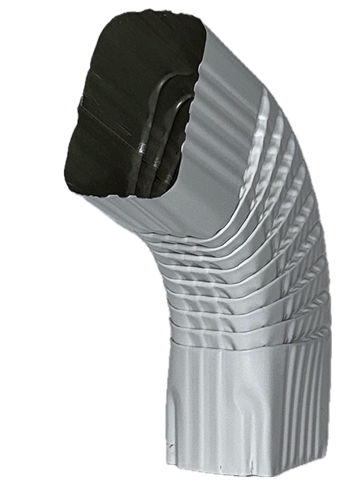

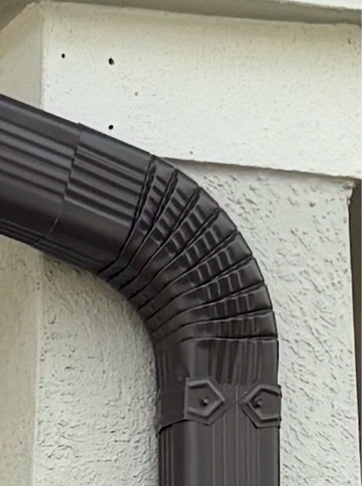

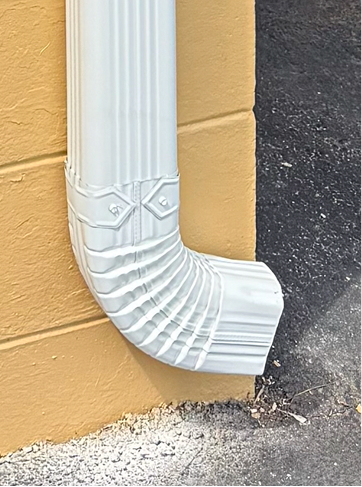

B elbows:

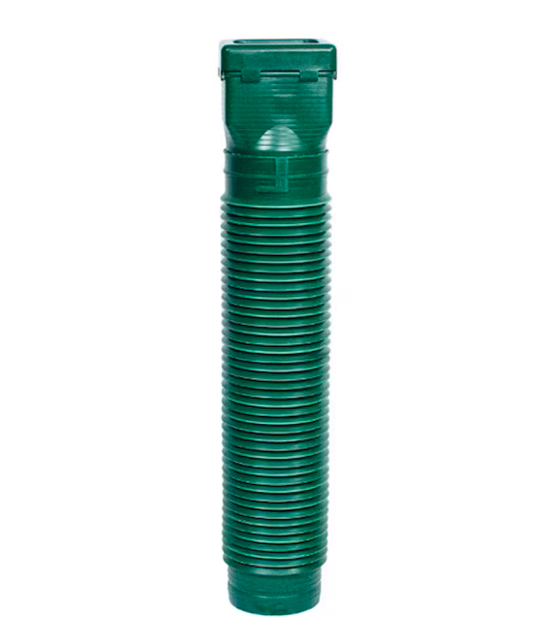

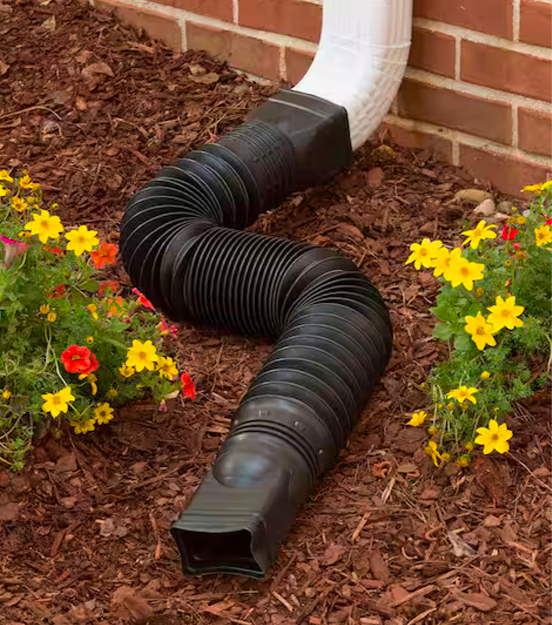

Plastic Ground Flex-Spout

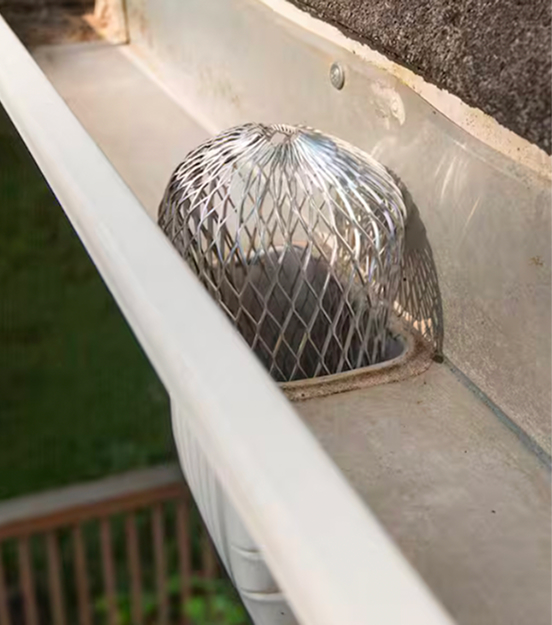

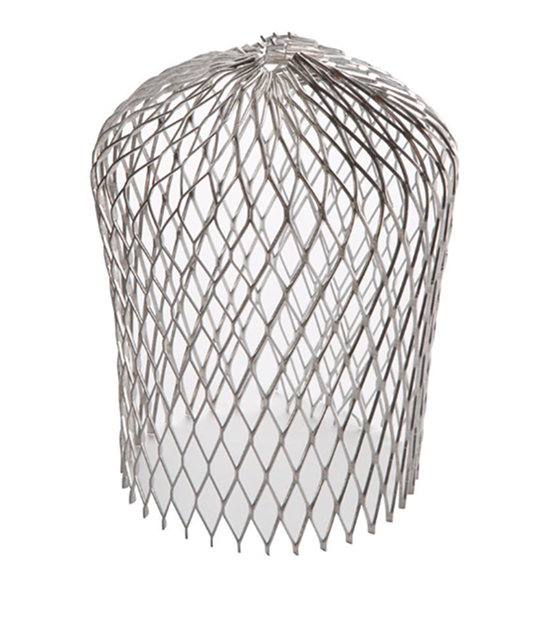

Downspout Strainer
Gutter Accessories

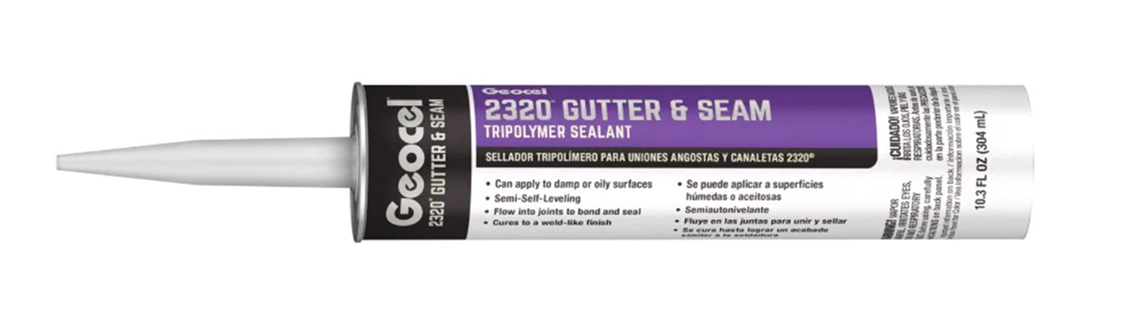

Geocel 2320 Sealant
Sealant is applied at seams, miters, and endcaps. Using professional-grade sealant ensures leak-free connections.

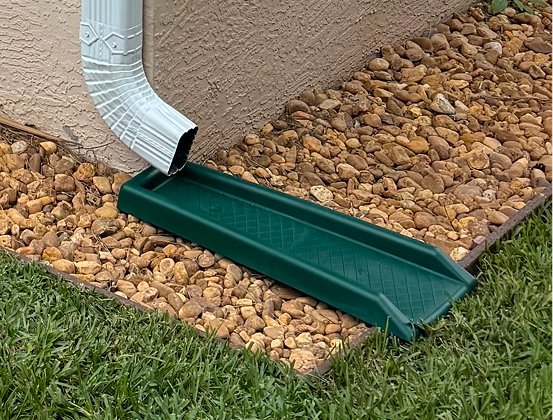

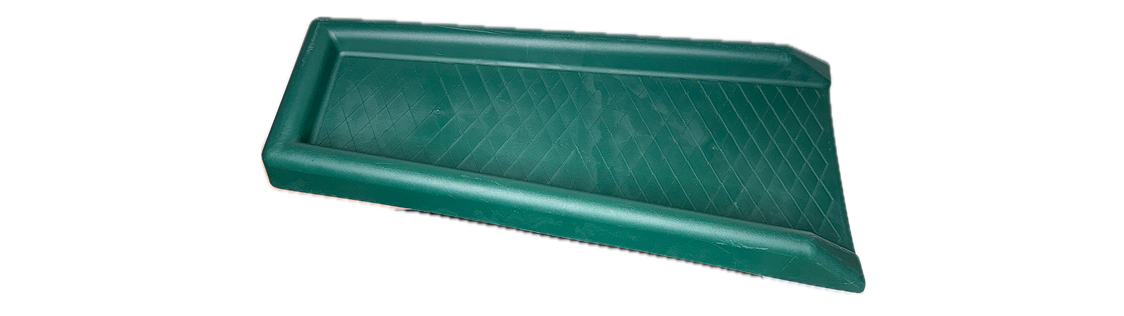

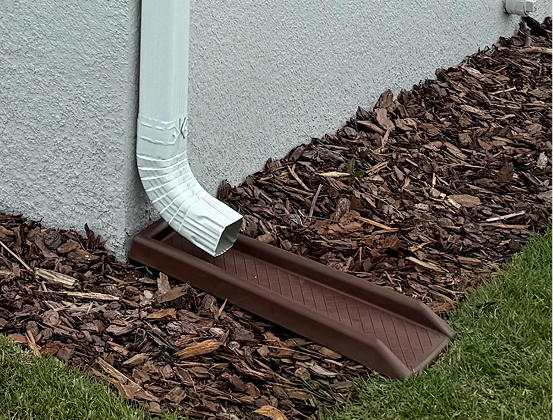

Splash Blocks

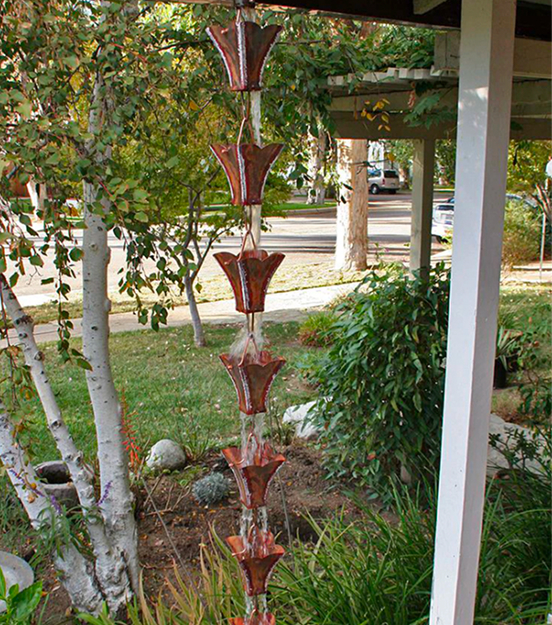

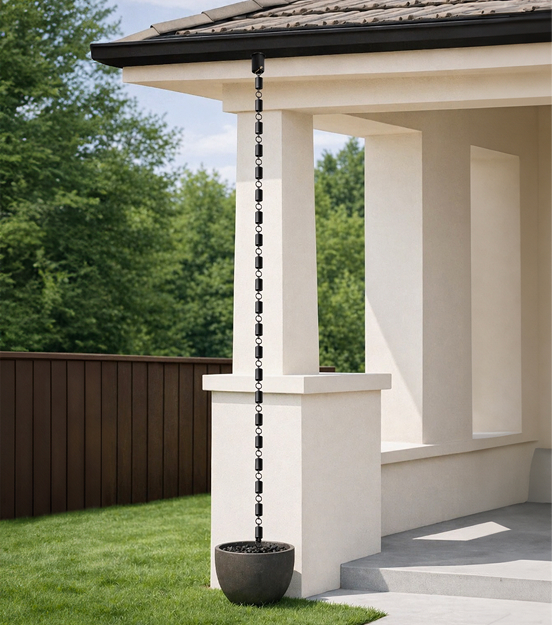

Rain Chains

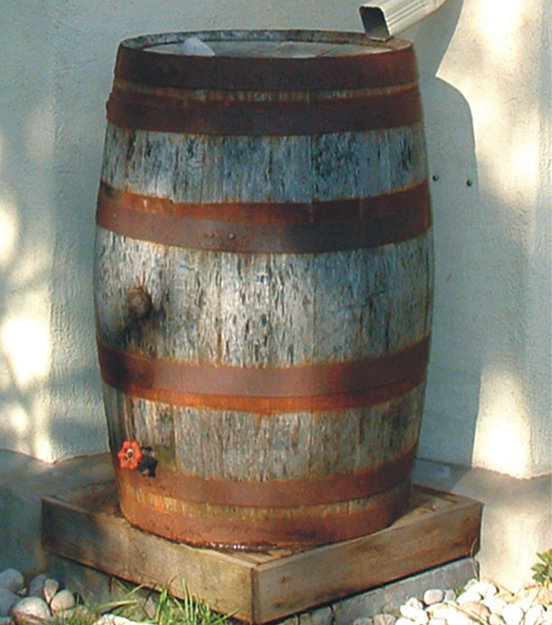

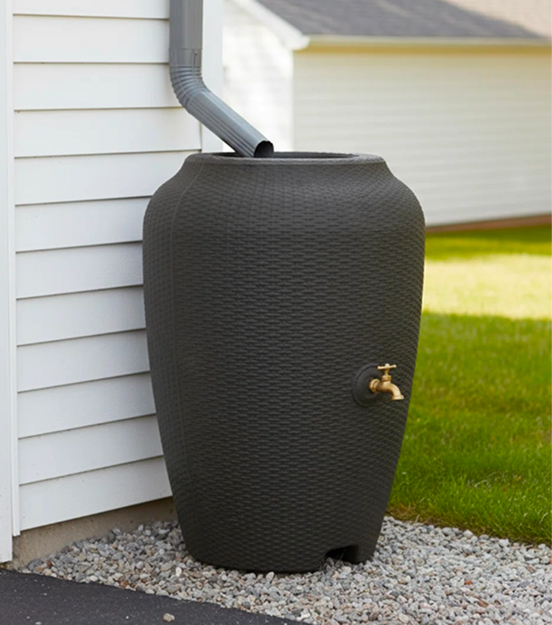

Rain Barrels

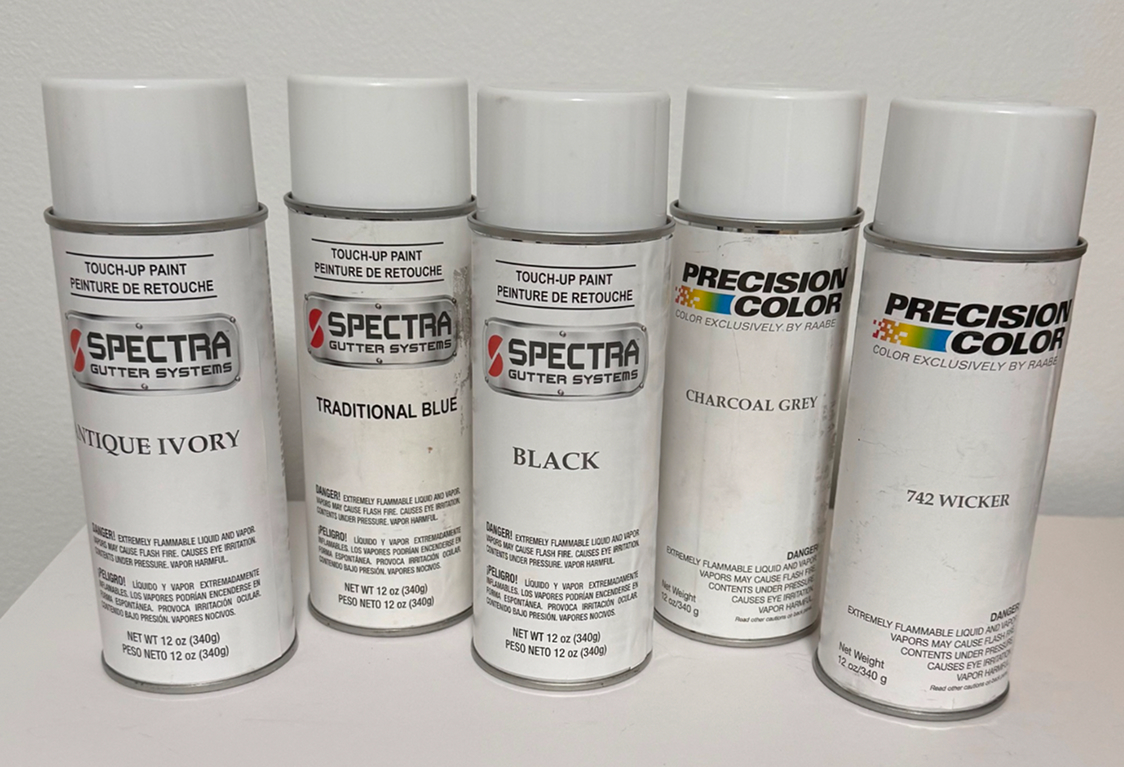

Touch-Up Paint

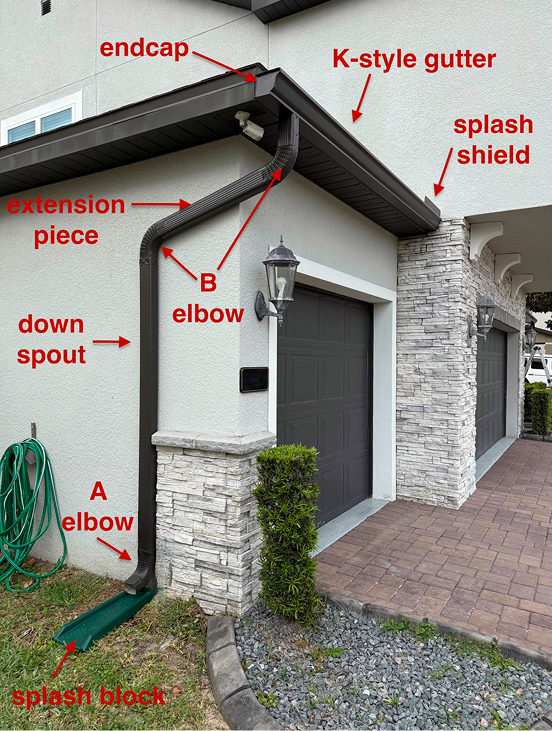

Why Part Selection Matters
A complete gutter system is more than just aluminum troughs. Each component works together to protect your home from water damage. When you use professional-grade materials, it ensures your gutters perform reliably for years to come.
Yet, even the highest-quality aluminum will underperform if the supporting parts are incorrectly installed or spaced. A gutter system’s durability depends on careful attention to every component.
At Gecko Gutter We Focus On:
- Proper hanger spacing along the entire gutter run
- Secure mechanical fastening at all joints and connections
- Correct pitch to ensure consistent water flow
- Thorough sealing at seams, miters, and endcaps
- Proper part selection and sizing for your home’s roofline
Even small components can have a major impact on drainage efficiency and system longevity. Attention to detail is what separates a temporary repair from a system built to last decades.
You can also read more about our options for Leaf Guard and Super Gutters on our website.
